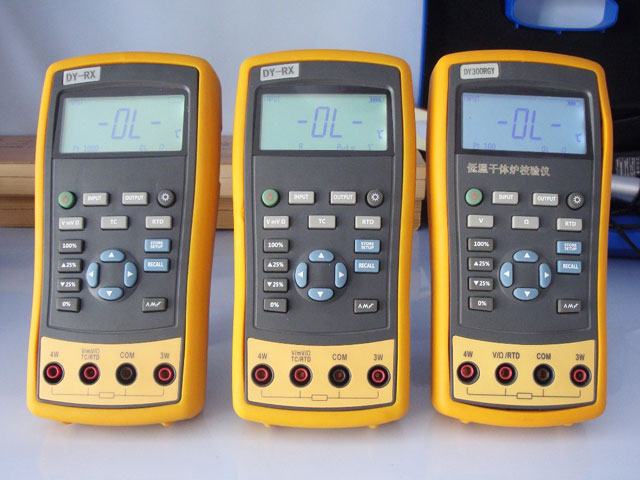

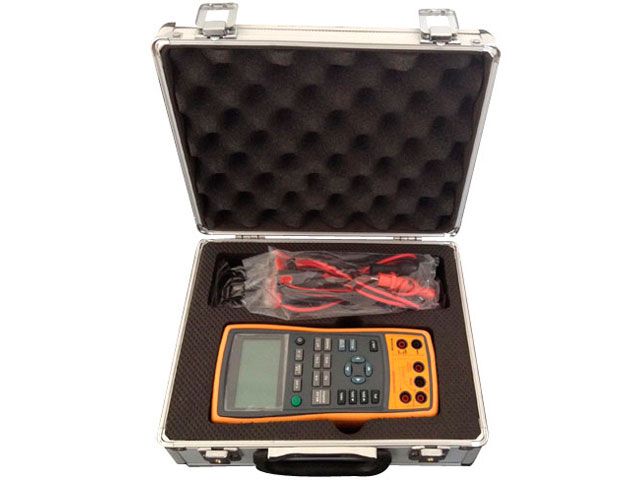

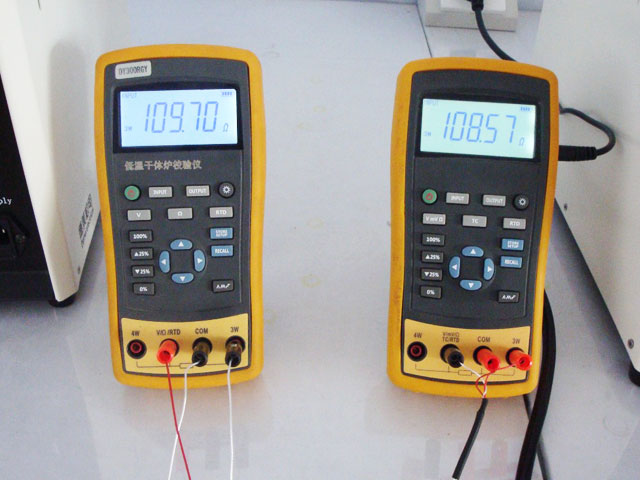

DY-RX Thermal instrument calibrator
◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Functions]
1. Upper and lower display screens.The upper part of the screen is used to display the voltage, current (loop supply), millivolt, resistance, and on-off tests of the isolation module.The lower part of the screen displays the measured and output voltage, current, frequency, ohm, as well as thermal resistance (RTD), thermocouple (TC) in the form of temperature.
2. As isolated loop power supply is adopted, only one dy-rx can complete the calibration of multiple two-wire transmitters.
3. Provide cold end compensation for thermocouple (TC) measurement.
4. Customize the output range to facilitate the call of 0% ~ 100% values of different applications.
5, manual step, automatic step, 0 ~ 100% step and slope output.
List of output and measurement functions
| Function | Measuring | Output | Mark |
| Direct voltage | 0~60V(Top Screen±30V) | 0～10V | Acoustic measurement |
| Direct current | 0~24mA(Top Screen±24mA) | 0～24mA | Acoustic measurement |
| Frequency | 1.000Hz～99.999kHz | 0.20Hz～20.000kHz | |
| Resistance | 0～3200Ω | 10～3200Ω | Acoustic measurement |
| Direct millivolt | -10mV~120mV | -10mV~120mV | Acoustic measurement |
| Thermal resistance | Pt100、Pt1000、Cu50、Cu100 | Pt100、Pt1000、Cu50、Cu100 | |
| Thermocouple | E、J、K、T、B、R、S、N | E、J、K、T、B、R、S、N | |
| Others | Isolated loop power supply, step output, slope output, step output, custom range | ||
